Link are redefining what an entry level ECU should be.

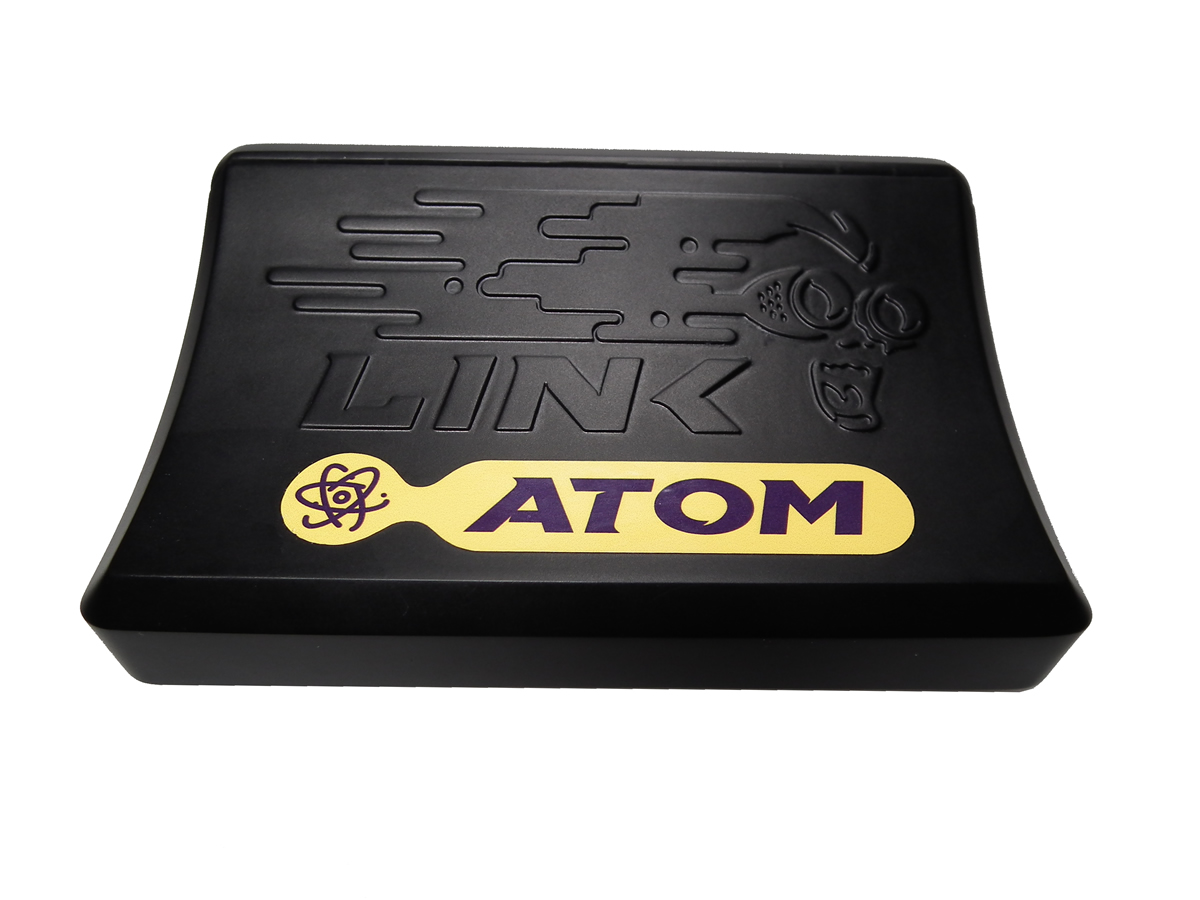

The Atom runs on the proven Link G4+ platform, has full configurability and is rated to IP67, making it dust and waterproof.
The Atom can control up to 2 rotors or 4 cylinders with sequential injection and direct spark. This makes it ideal for naturally aspirated engines that just need a retune and don’t need all the extra sensors and features that come with our higher level ECUs.
Requires “A” loom.
The G4+ Atom II runs the same microprocessor and firmware as our the G4+ Xtreme.
2 x Digital inputs
2 x Temperature inputs
3 x Analog inputs
2 x Trigger inputs
4 x Injector drives
4 x Ignition drivers
4 x Auxiliary outputs^
+5V Sensor power supply
^unused ignition drives can be used as additional Aux
1x CAN bus
1x USB tuning connection
1 x thirty four pin, waterproof connector.
Comes loaded with all of LinkECU’s standard features.
Dimensions: 90mmL x 130mmW x 45mmH (without loom)
Weight: 180 grams
What’s in the box:
Supplied with a USB tuning cable and mounting
